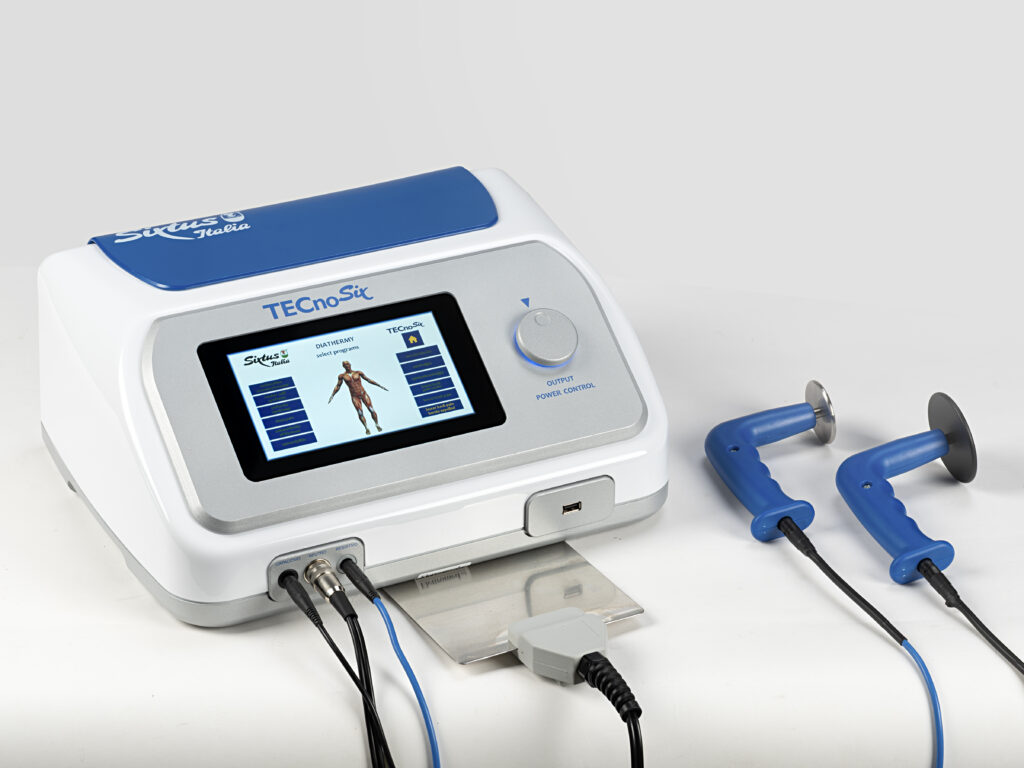

Tecnosix CR5 is a medical device capable of generating a sinusoidal alternating electric current of 470 Khz that, during the treatment session, is applied by the physiotherapist to the patient’s body through the CAPACITIVE and RESISTIVE modes, which correspond to different biological effects.

Tecnosix CR5 is easily managed by the operator via a highly intuitive graphic interface displayed on a 7” color touch screen monitor.

Specification:

• Automatic Impedance System: real-time monitoring of the thermal level  reached in the treated body segment
• Ergonomic and easily sanitised accessories
• Thermal session tracking system
• Fewer interface screens for intuitive and streamlined operation
• Patient and treatment data management with USB export capability

Supplied with:

• 1 Main power cable.
• 1 Neutral Plate big
• 1 Neutral Plate medium
• 3 Uncoated metal resistive electrodes (small, medium, large)
• 3 Capacitive electrodes coated with black insulator (small, medium, large)
• 2 Ergonomic handles
• 2 Connection cables
• 3 Circular handles
• 1 Manual

• Power supply: 100-230 VAC, 50-60 Hz
• Mains power: 250 VA
• Mains fuses: 2 x 1.6 A delay
• Physical agent: Sinusoidal alternating current
• Operating frequency: 470 kHz (+/- 5%)
• Maximum output voltage: Approximately 300 Vrms, 200 ohm load
• Timer: with automatic cut-off
• Application mode: Capacitive and Resistive
• Applied parts: types BF
• Monitor: 7″ color resistive touch screen display
• Enclosure protection rating: IP21
• Use in the presence of flammable mixtures: Unprotected
• Dimensions: 390 x 300 x 170 mm
• Weight 7 kg
• Medical device (MDD 93/42 EEC): Class IIB
• Insulation class: II
