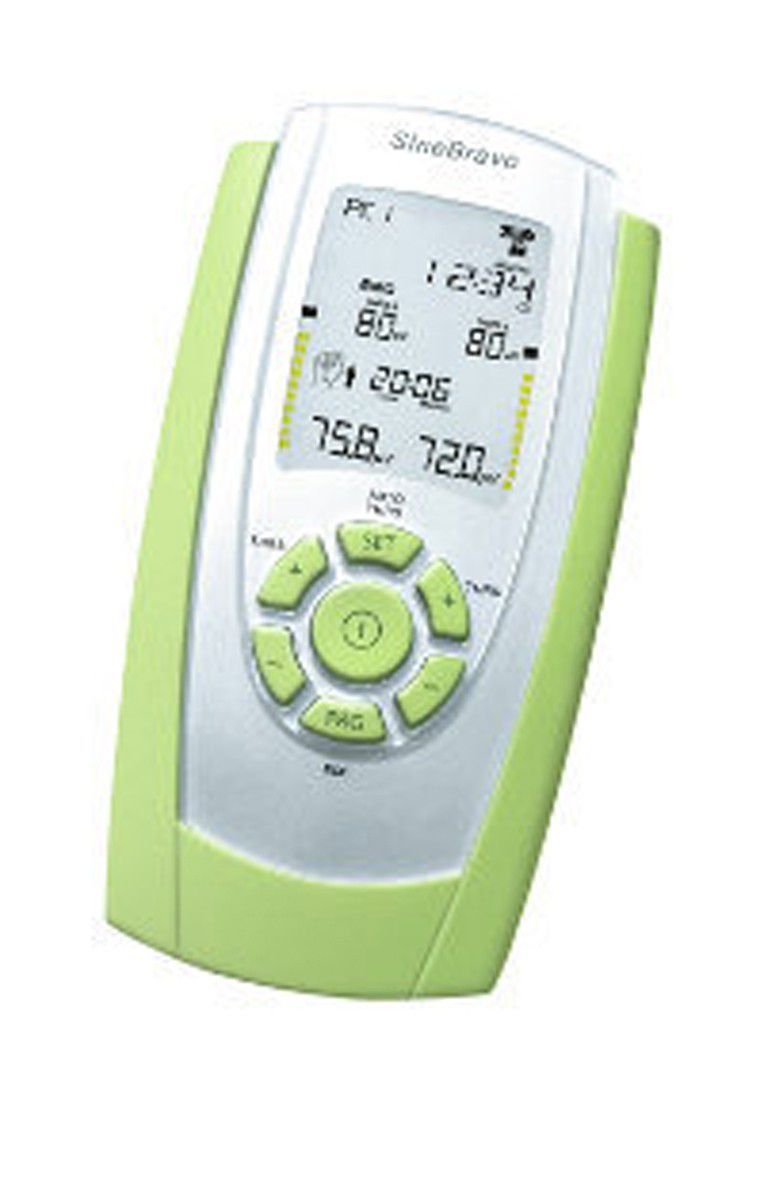

SineBravo is a simple digital 2-channel biofeedback-EMG system. It was developed to allow both the patient and the therapist to monitor muscle activity in the range of 0.2 to 2000 microvolts. Software is available for the therapist to evaluate the patient's treatments and elaborate statistics. Very simple to use.

Specific:

• Threshold setting can be done automatically or manually
• Automatic threshold adjustment during treatment is possible
• Acoustic indication of muscular activities as well as visual display by graphic bars and by increasing or decreasing numbers on the screen
• Stand to hold the device during exercises
• Global therapy control at the end of each treatment
• Detailed evaluation of longer treatment periods by the therapist is possible
• The “RealTime- Clock” allows the temporal assignment of the treatment data
• PC interface via USB-fibre optic adapter (optional) for detailed therapy control

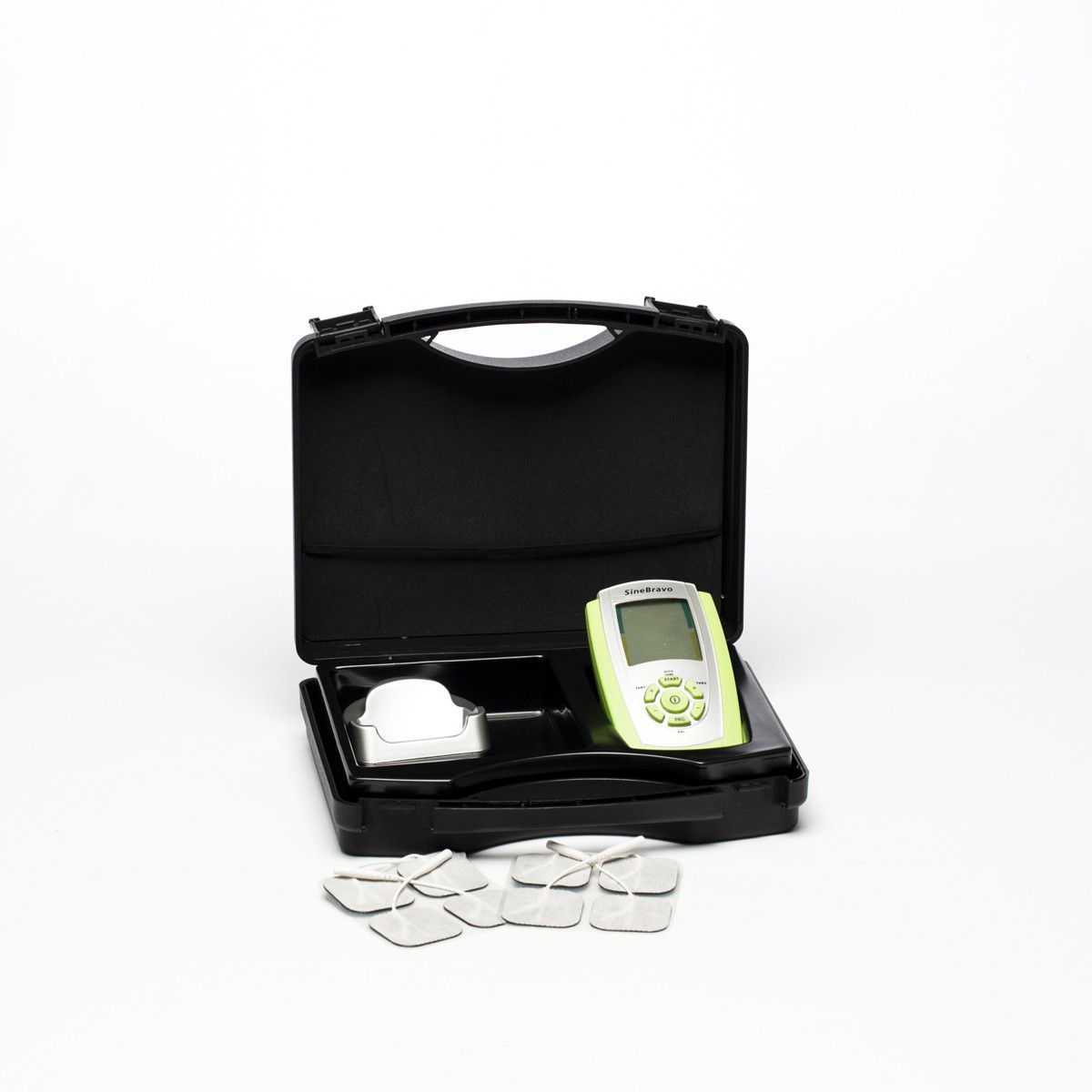

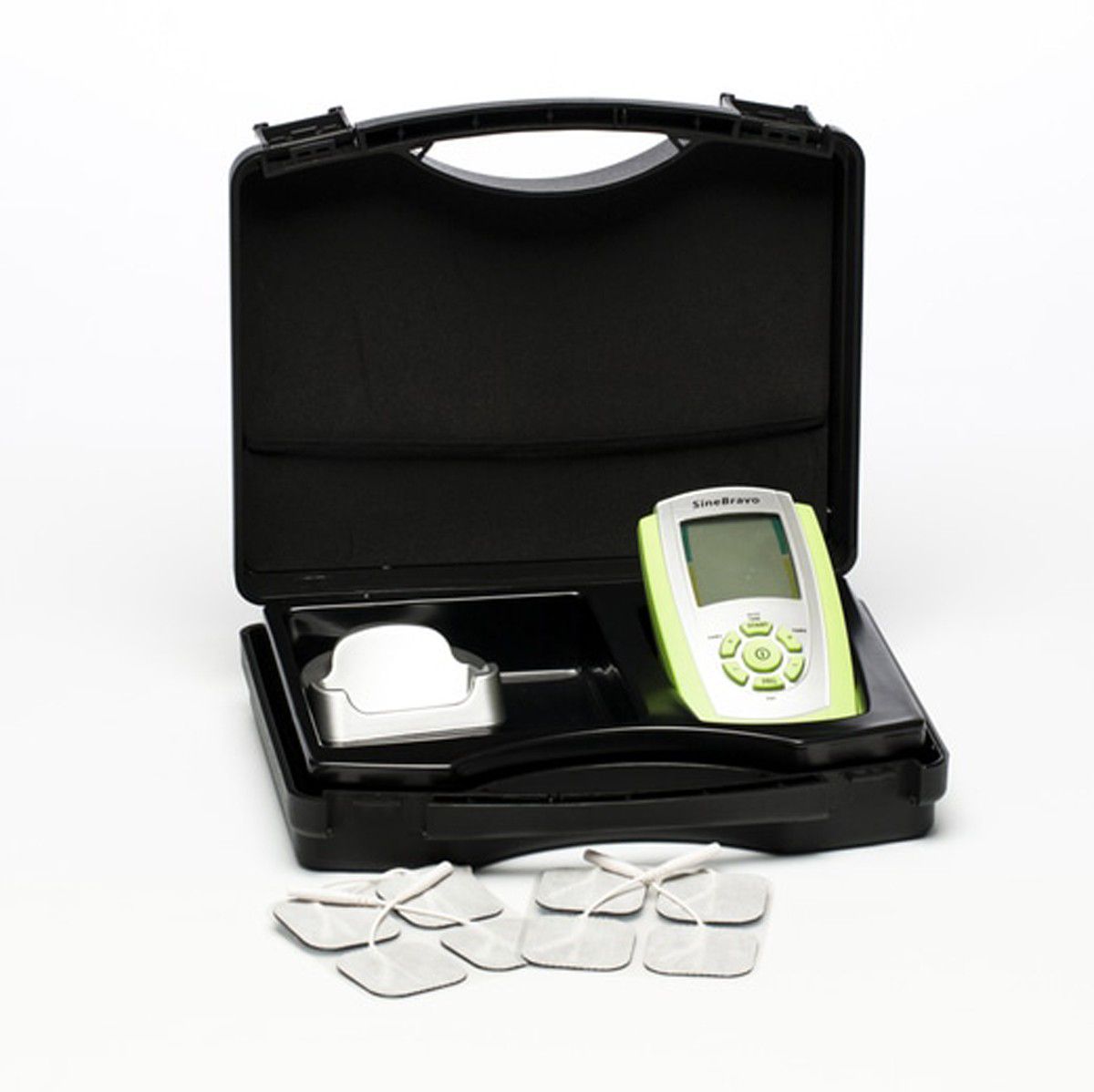

Accessories supplied:

• 1 SineBravo incl. stand
• 2 cables to connect the electrodes or the probe
• 1 cable to connect the reference electrode
• 1 carrying case
• 1 user manual
• 4 batteries size AA

Optional: PC-software for detailed evaluation of longer treatment periods incl. graphic preparation.

Available on request:

• Electrode mm 45 x 35 x 4 pz
• Electrode mm 45 x 80 x 4 pz

• Certificate: CE 0123
• Channel: physiotherapy, retail, sports clubs
• Pack: 1 pc

• 2 independent channels
• EMG Range: 0.2 – 2000 μV RMS
• Sensitivity: 0.1 μV RMS
• Work/Rest–period: 2 – 99 seconds
• Number of tests: 1 – 99
• Dimensions (mm): 142 x 74 x 35
• Weight: 270 g including batteries
• Class II a
• CE 0123
