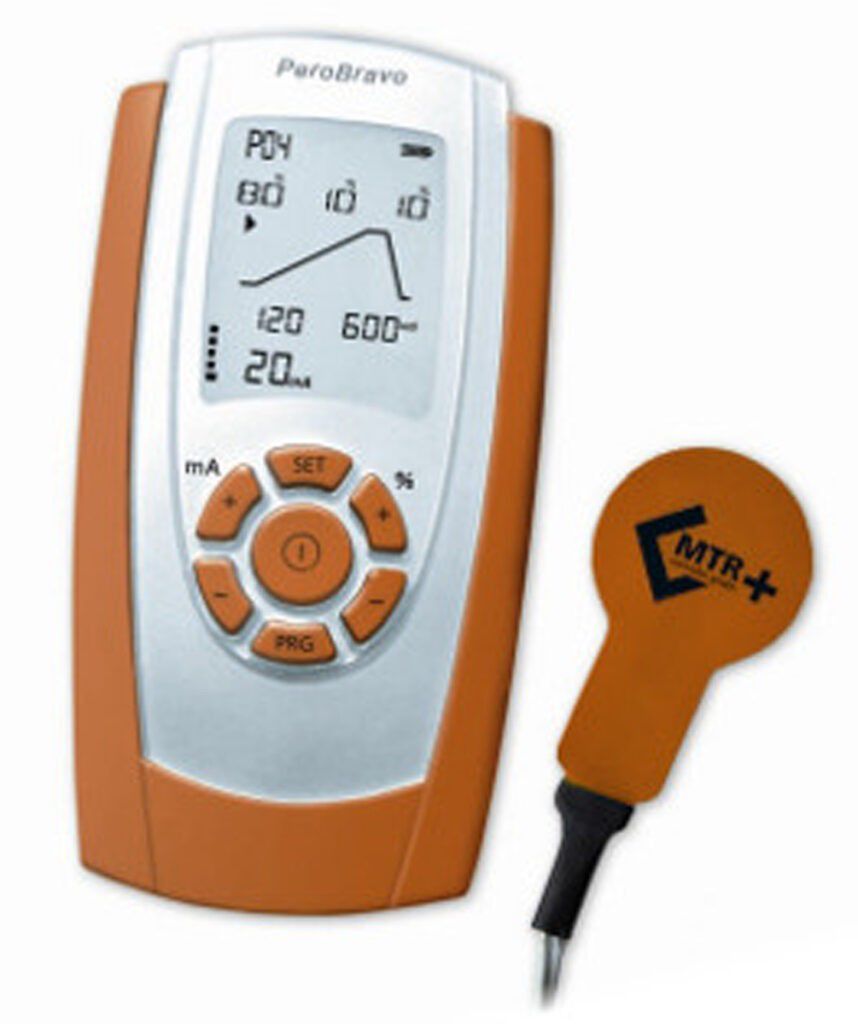

Versatile digital one-channel-device
Suited for stimulation of paretic muscles, TENS- and EMS-treatment
Specific:
-1 diagnostic-program to create a strength/duration-curve (SDC)
-11 preset treatment programs with different shapes of pulses
-Single pulses triangular (form of triangle is adjustable)
-Single pulses trapezoidal (form of trapeze is adjustable)
-Biphasic or monophasic current
-3 preset programs for training of walking (peroneal palsy)
-5 custom programs: single phase / single pulse, multiple phase biphasic or monophasic -current and for training of walking
-Foot switch for gait-training is included
-Automatic or manual trigger of pulses
-indication of pulse from, intensity and remaining treatment time
-Statistics showing important global treatment data or detailed statistics of each session for 60 days of treatment
-Real time clock
-CE 0123
Technical data:
Intensity: 0 – 60 mA
Power supply: 4 rechargeable NiMH-batteries 1,5 V Type AA
Single pulses:

Monophasic triangular or trapezoidal with continuously changing polarity
Pulse width: 1 ms – 1000 ms
Enveloped pulses:

Biphasic, symmetrical, rectangular or monophasic positive, rectangular
Frequency: 1 – 120 Hz
Pulse width: 50 µs – 35 ms (positive part)
Delay-time (gait-training): 0 – 1000 ms
Accessories supplied:
1 PeroBravo
4 self-adhesive electrodes (40 x 40 mm)
1 lead wire to connect the electrodes
1 foot switch
2 rubber electrodes (50 x 50 mm)
2 sponge bags
2 straps to fix the electrodes
4 rechargeable batteries type AA
1 battery charger
1 carrying case and 1 operators manual
Available on request:
- Electrode mm 45 x 35 x 4 pz
- Electrode mm 45 x 80 x 4 pz

• Certificate: CE 0123
• Channel: physiotherapy, retail, sports clubs
• Pack: 1 pc
