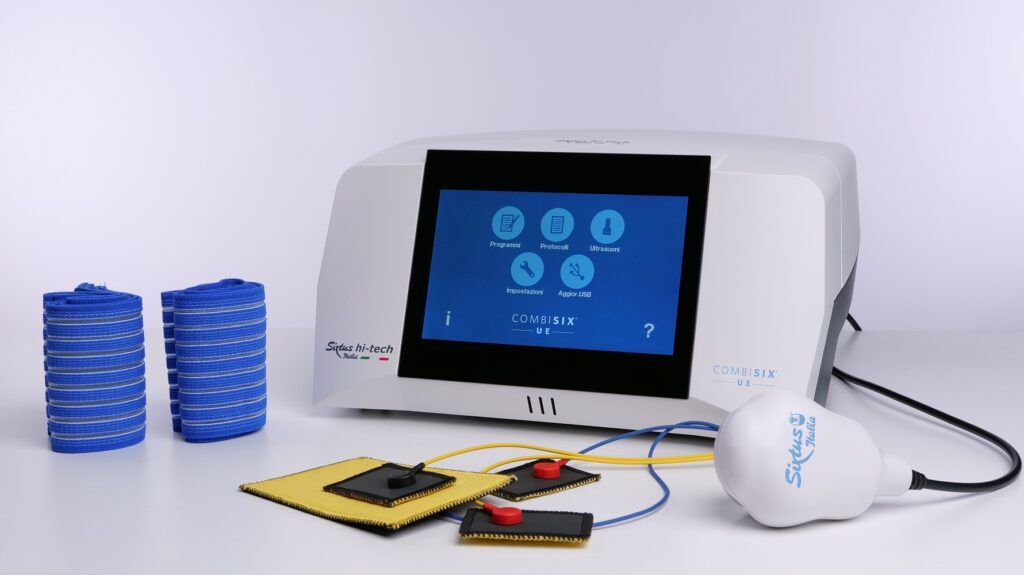

Combisix UE is a 1, 2, 3 MHz frequency portable benchtop ultrasound therapy, combined with a 2-channel electrotherapy.
Combisix UE has 3 working modes:
1) Manual
2) Preset protocols
- 48 US protocols
- 80 ET protocols
- 27 US/ET protocols
3) Customised protocols
Specifications:
- Exclusive Design
- New architecture software
- 7 ”capacitive touchscreen display
- 2 mm tempered glass screen
- Updates via USB ports
- Security slot security system
- 6 selectable languages
Technical features:
- Output frequency 1.0-2.0-3.0 MHz
- Maximum intensity 3.0 W/cmq
- Maximum direct current 30 mA
- Maximum pulse current 70 mA
- Maximum output voltage 100 Vdc
- Power supply 90-240 Vac/50-60 Hz
- Maximum absorbed power 100 VA
- Class II a
- CE 0051
Supplied with:
- 1 Gel us 1000 ml
- 1 power cable 2 m
- 1 US handpiece 1-3mhz 35mm
- 4 electrodes 80x120 mm in conductive rubber
- 4 electrodes 45x60 mm in conductive rubber
- 2 Velcro band 8x40cm
- 2 Velcro band 8x60cm
- 1 Velcro band 8x100cm
- 1 Connection cable 1-2
Available on request:
- Trolley for transport
- Trolley with wheels and handpiece holder
