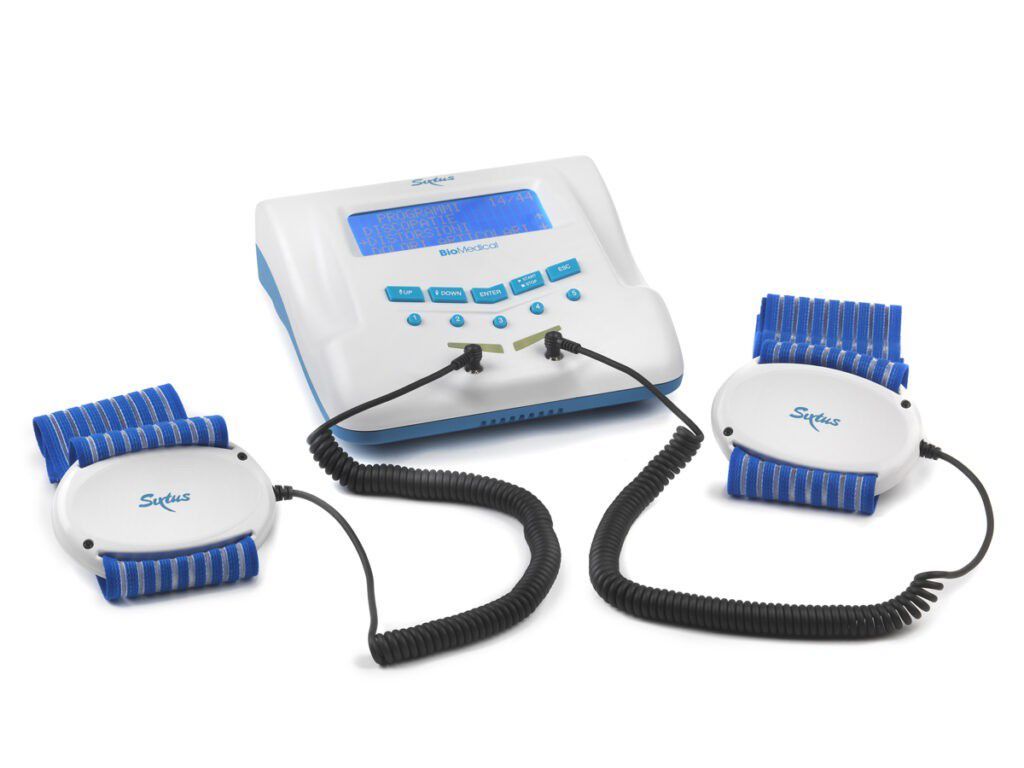

Biomedical is a magnetotherapy device.
The unit has embedded a square wave electric current generator with variable frequency from 2 Hz to 100
Hz and variable pulse duration.
The intensity of the impulsive magnetic field, varying from 10 to 100 Gauss, is achieved by suitably modulating the implementation time of the circuit delivering current to the applicators.
Biomedical has 2 working modes:
2) Preset protocols
Thanks to the keypad able to memorize treatments, it is also possible to store up to five programs (free program or preset programs), which can be quickly retrieved by using the associated keys.
- 6 selectable language
- Power supply 230V~ / 50-60Hz
- Max. absorbed power 22VA
- Inside fuses T500mA (delayed) type 5x20
- Output frequency 2 → 100 Hz
- Maximum intensity 100 Gauss (10mT)
- Night Program Frequency from 1000 to 5000 Hz (step 500)
- Electrical safety class (IEC 60601-1) II BF
- Medical Device Class (MDD 93/42/EC) IIa
- Level of protection Device IP20
- Applicators IP20

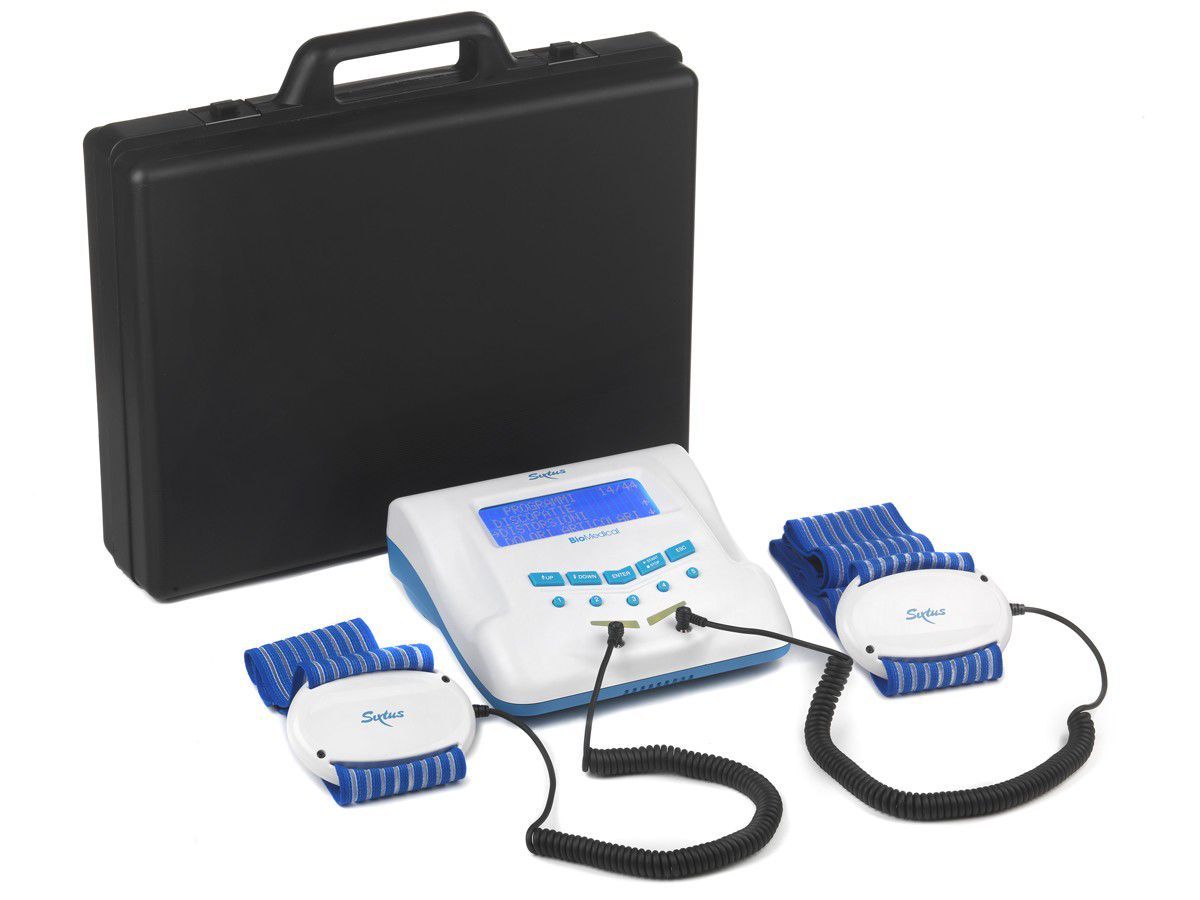

- 1 power supply cable 2 m
- 2 Transducers/Applicators
- 1 velcro elastic band 8x60 cm
- 1 Velcro Elastic Band 8x100 cm
- 1 ABS Case
Available on request:
- Kidney belt
- Leg wrap
- Knee / elbow / shoulder wrap
- Waiscoast wrap
- Pillow cover
contact us if you have any doubts
